TSA-18
1.8 kW auto tool change spindle, 60000 rpm max speed, 62mm body diameter.
- Power
- 1.8 kW
- Max speed
- 60000 rpm
- Body diameter
- 62 mm
₹1,20,000
In stock
22 products
High-Speed Spindles
Spindle motors from 300 W to 6.5 kW, DC and AC, air- and water-cooled, for routing, engraving, milling and stone work.
- Power
- 1.8 kW
- Max speed
- 60000 rpm
- Collet
- 6 mm
₹1,20,000
In stock
TS-01
300 W DC spindle motor, 12-48 V DC at 6 A, 3,000-12,000 rpm, ER11 collet, 52 mm dia x 170 mm, 1.4 kg.
- Power
- 300 W
- Speed
- 3000 - 12000 rpm
- Collet
- ER11 Chuck
₹4,300
In stock
TS-02
400 W DC spindle motor, 12-48 V DC at 8.5 A, 3,000-12,000 rpm, ER11 collet, 52 mm dia x 170 mm, 1.4 kg.
- Power
- 400 W
- Speed
- 3000 - 12000 rpm
- Collet
- ER11 Chuck
₹4,700
In stock

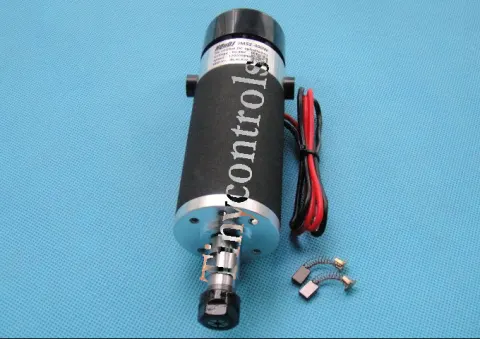

TS-03
500 W DC spindle motor, 12-48 V DC at 10 A, 3,000-12,000 rpm, ER11 collet, 52 mm dia x 170 mm, 1.4 kg.
- Power
- 500 W
- Speed
- 3000 - 12000 rpm
- Collet
- ER11 Chuck
₹5,000
In stock
TS-11
300 W AC spindle, 25,000-60,000 rpm, ER8 collet, 48 mm dia x 137 mm, 1.5 kg, 75 V three-phase via VFD.
- Power
- 300 W
- Speed
- 25000 - 60000 rpm
- Collet
- ER08 Chuck
₹21,000
In stock
TS-12
700 W air-cooled AC spindle, 10,000-20,000 rpm, ER11 collet, 75x78 mm, 190 mm long, 1.5 kg.
- Power
- 700 W
- Speed
- 10000 - 20000 rpm
- Collet
- ER11 Chuck
₹18,000
In stock
TS-13
1.2 kW water-cooled AC spindle, 15,000-40,000 rpm, ER11 collet, 62 mm dia x 190 mm, 2.6 kg.
- Power
- 1.2 kW
- Speed
- 15000 - 40000 rpm
- Collet
- ER11 Chuck
₹25,000
In stock
TS-19
800 W water-cooled AC spindle, 10,000-24,000 rpm, ER11 collet, 65 mm dia x 183 mm, 2.6 kg.
- Power
- 800 W
- Speed
- 10000 - 24000 rpm
- Collet
- ER11 Chuck
₹12,000
In stock
TS-20
800 W air-cooled AC spindle, 10,000-24,000 rpm, ER11 collet, 65 mm dia x 183 mm, 2.6 kg.
- Power
- 800 W
- Speed
- 10000 - 24000 rpm
- Collet
- ER11 Chuck
₹12,000
In stock
TS-21
1.5 kW air-cooled AC spindle, 10,000-24,000 rpm, ER11 collet, 80 mm dia x 205 mm, 4.35 kg.
- Power
- 1.5 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER11 Chuck
₹14,000
In stock
TS-22
2.2 kW air-cooled AC spindle, 10,000-24,000 rpm, ER16 collet, 80 mm dia x 230 mm, 5.45 kg.
- Power
- 2.2 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER16 Chuck
₹19,000
In stock
TS-23
2.2 kW water-cooled AC spindle, 10,000-24,000 rpm, ER20 collet, 80 mm dia x 230 mm, 5.45 kg.
- Power
- 2.2 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER20 Chuck
₹19,000
In stock
TS-30
3.2 kW AC spindle, 10,000-24,000 rpm, ER20 collet, 100 mm dia x 260 mm, 6.8 kg, 220 V three-phase.
- Power
- 3.2 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER20 Chuck
₹26,000
In stock
TS-31
3.5 kW air-cooled square-body AC spindle, 8,000-18,000 rpm, ER20 collet, 6.8 kg, 220 V three-phase.
- Power
- 3.5 kW
- Speed
- 8000 - 18000 rpm
- Collet
- ER20 Chuck
₹24,000
In stock
TS-32
3.5 kW air-cooled square-body AC spindle, 8,000-18,000 rpm, ER20 collet, 6.8 kg, 380 V three-phase.
- Power
- 3.5 kW
- Speed
- 8000 - 18000 rpm
- Collet
- ER20 Chuck
₹24,000
In stock
TS-34
3.2 kW AC spindle, 10,000-24,000 rpm, ER20 collet, 100 mm dia x 260 mm, 6.8 kg, 380 V three-phase.
- Power
- 3.2 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER20 Chuck
₹26,000
In stock
TS-39
3.2 kW three-phase spindle motor for stone working, ER20 collet, 10000-24000 rpm, 100 mm diameter.
- Power
- 3.2 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER20
₹48,000
In stock
TS-45
4.5 kW round-body AC spindle, 10,000-24,000 rpm, ER20 collet, 100 mm dia x 300 mm, 8.5 kg, 380 V three-phase.
- Power
- 4.5 kW
- Speed
- 10000 - 24000 rpm
- Collet
- ER20 Chuck
₹38,000
In stock
TS-46
4.5 kW air-cooled square-body AC spindle, 6,000-18,000 rpm, ER32 collet, 13 kg, 380 V three-phase.
- Power
- 4.5 kW
- Speed
- 6000 - 18000 rpm
- Collet
- ER32 Chuck
₹38,000
In stock
TS-51
5.0 kW air-cooled square-body AC spindle, 6,000-18,000 rpm, ER32 collet, 13 kg, 380 V three-phase.
- Power
- 5.0 kW
- Speed
- 6000 - 18000 rpm
- Collet
- ER32 Chuck
₹44,000
In stock
TS-61
6.5 kW three-phase spindle motor for stone working, ER32 collet, 8000-18000 rpm, 125 mm diameter.
- Power
- 6.5 kW
- Speed
- 8000 - 18000 rpm
- Collet
- ER32
₹60,000
In stock
Four sub-categories: DC Spindles (48V, light-duty), General Purpose Spindle (AC, 300W-5kW), Auto Tool Change (ATC, tool-change-capable), and Motors For Stone (higher-duty, continuous cutting). Collet size and body/shaft diameter matter more than power alone when matching a spindle to a mount or tooling — check the Spindle Holder (Clamp) category for a matching clamp.
