7 products
3-Axes Motion Controllers
Three-axis standalone controllers for G-code CNC machining, PCB drilling, gear hobbing, surface grinding and hot-foil stamping.
Offline PCB drilling controller with a handheld pendant and remote display, importing DRL, ROU and XLN drill files directly with differential pulse/direction outputs.
Three-axis gear hobbing machine controller synchronizing blank rotation and hob feed to the main hobbing spindle, with a 32-bit ARM processor and encoder-based spindle speed reading.

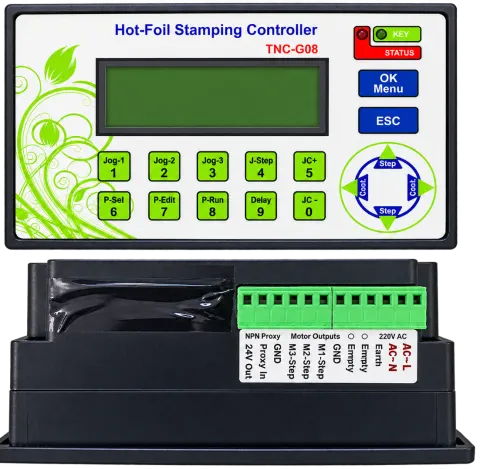

Three-motor controller for hot foil stamping machines, with opto-isolated pulse input and manual jogging.

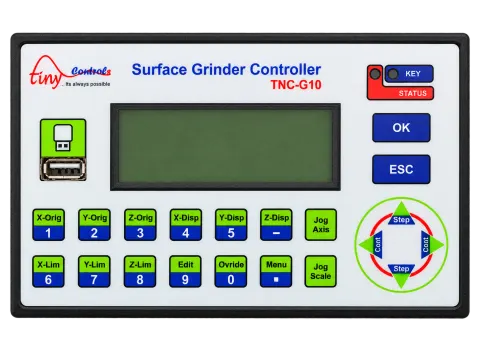

Three-axis surface grinder controller with automatic and manual operating modes, jogging, potentiometer speed control and homing, running directly from 90-250 V AC with a 20x4 LCD.
Panel-mount 3-axis G-code motion controller with differential step/direction outputs to 200 kHz per axis, USB program loading, and an inbuilt keypad for jogging and setup.

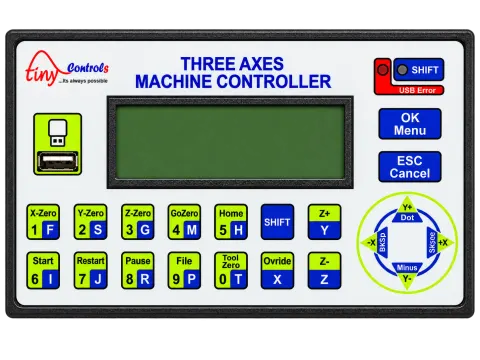

Three-axis G-code controller with step and direction outputs and linear interpolation across X, Y and Z.
TNC-M33 is an offline 3-axis G-code CNC controller with a TNE-100H 100ppr handwheel encoder, differential pulse/direction outputs and 4 opto-isolated inputs.
Seven controllers covering both general G-code milling (TNC-M33, TNC-M03, TNC-G13) and purpose-built machine control (TNC-D33 for PCB drilling with direct DRL/ROU/XLN file import, TNC-G03 for gear hobbing, TNC-G08 for hot-foil stamping, TNC-G10 for surface grinding). All run standalone from a USB drive with no PC required once loaded, and all are designed and built by Tiny Controls in India.
