Tstep-087
Two-phase stepper drive, 18-80 V DC, 1.2-7.0 A jumper selectable, with fixed 10-microstep resolution.
- Supply voltage
- 18 - 80 V DC
- Output current
- 1.2 - 7.0 A
- Microstepping
- 10 Microsteps
₹5,200
Own design
10 products
2-Phase Stepper Driver
Open-loop stepper drives from 0.7A to 8.0A output current, 18V to 160V input.

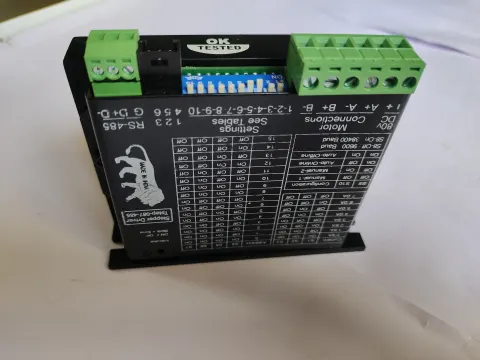

Tstep-087-485
Two-phase stepper drive with an RS-485 interface, 18-80 V DC, 1.2-7.0 A, running online or offline.
- Supply voltage
- 18 - 80 V DC
- Output current
- 1.2 - 7.0 A
- Interface
- RS-485
₹6,100
Own design
Tstep-087X
Two-phase stepper drive for 18-80 V DC supplies, with output current jumper-selectable from 1.2 A to 7.0 A.
- Supply voltage
- 18 - 80 V DC
- Output current
- 1.2 - 7.0 A
- Microstepping
- 4, 5, 8, 10, 16, 20, 32, 40
₹5,400
Own design

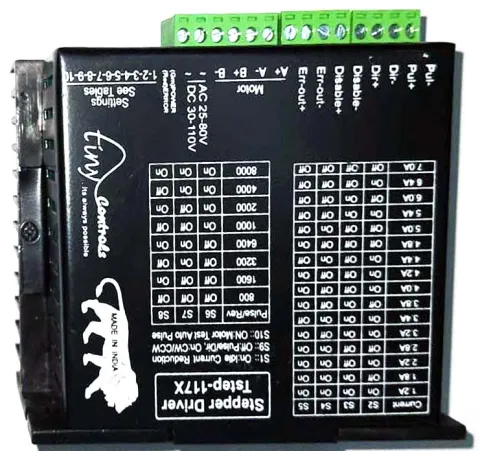

Tstep-117X
Two-phase stepper drive for 18-110 V DC or 18-80 V AC supplies, with output current DIP-selectable from 1.2 A to 7.0 A.
- Supply voltage
- 18 - 110 V DC \ 18 - 80 V AC
- Output current
- 1.2 - 7.0 A
- Microstepping
- 4, 5, 8, 10, 16, 20, 32, 40
₹6,000
Own design

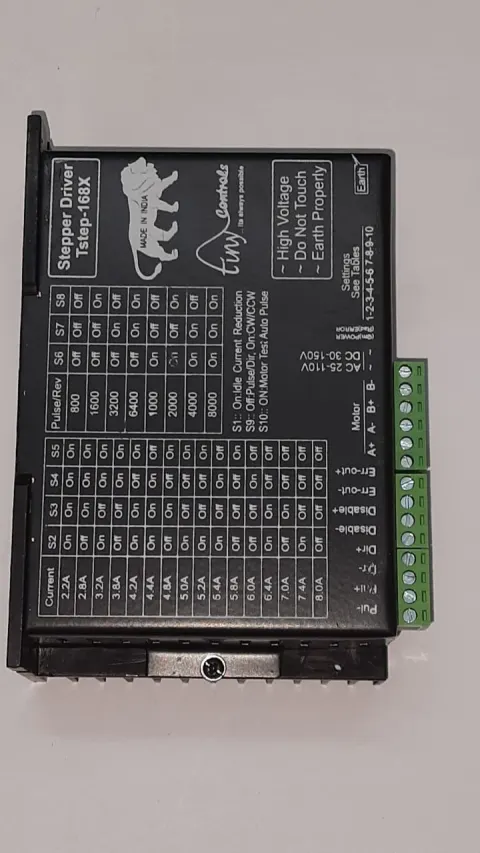

Tstep-168X
Two-phase stepper drive for 24-160 V DC or 18-110 V AC supplies, with output current jumper-selectable from 1.2 A to 8.0 A.
- Supply voltage
- 24 - 160 V DC \ 18 - 110 V AC
- Output current
- 1.2 - 8.0 A
- Microstepping
- 4, 5, 8, 10, 16, 20, 32
₹8,000
Own design
Tstep-484
Compact two-phase stepper drive, 18-48 V, 0.7-4.0 A jumper selectable, with microstepping.
- Supply voltage
- 18 - 48 V
- Output current
- 0.7 - 4.0 A
- Microstepping
- Yes
₹3,400
Own design
DW870-DC
Two-phase stepper drive, 18-80 V, output current dip-switch selectable from 1.4 A to 7.0 A.
- Rated Voltage
- 18-80 V
- Rated Current
- 1.4 - 7.0 A
- Microstepping
- YES
₹5,400
In stock

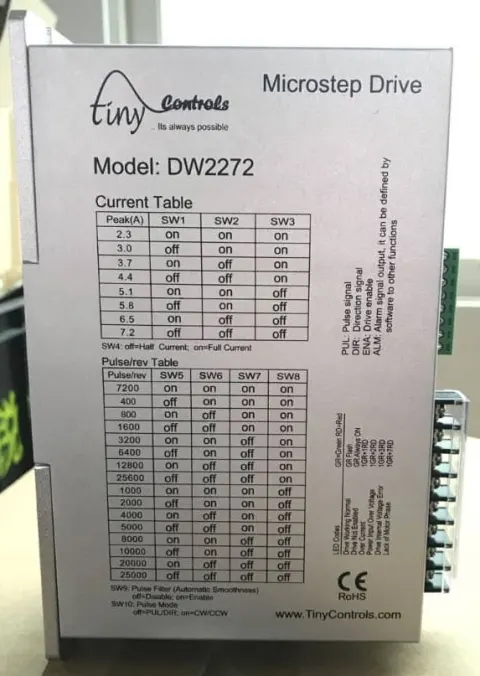

DW2272
Two-phase stepper drive, mains AC input 110-230 VAC, output current 2.3-7.2 A.
- Supply voltage
- 110 - 230 V AC
- Output current
- 2.3 - 7.2 A
₹9,200
In stock
DW872
Two-phase stepper drive, universal input 24-100 V DC or 18-80 V AC, output current 2.4-7.2 A.
- Supply voltage
- 24 - 100 V DC \ 18 - 80 V AC
- Output current
- 2.4 - 7.2 A
₹5,900
In stock

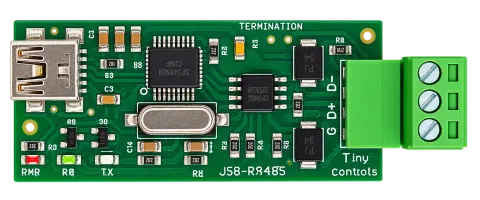

TUSB-485
USB to RS-485 interface dongle, for connecting an RS-485 device to a PC's USB port.
- Interface
- USB to RS-485
₹400
In stock
Ten drives spanning the Tstep-X own-design range (Tstep-484 for small NEMA 17/23 motors up to Tstep-168X for larger NEMA 34 motors at up to 160V) plus resold DW-series drives with AC or DC input flexibility. Higher supply voltage keeps torque up further into the speed range, since winding inductance limits how fast current re-establishes at each step — pick supply voltage first for the speed the axis needs, then current for the motor's own rating.
