M2864T045-14
NEMA 34 stepper motor, 86mm flange, 4.5 Nm / 45.9 kg-cm holding torque, 4 leads, 14mm keyed shaft.
- Flange size
- 86 mm (NEMA 34)
- Holding torque
- 4.5 Nm \ 45.89 kg-cm
₹4,600
In stock
24 products
2-Phase Stepping Motor
Two-phase stepper motors across four NEMA frame sizes, 0.25 Nm to 19 Nm holding torque.

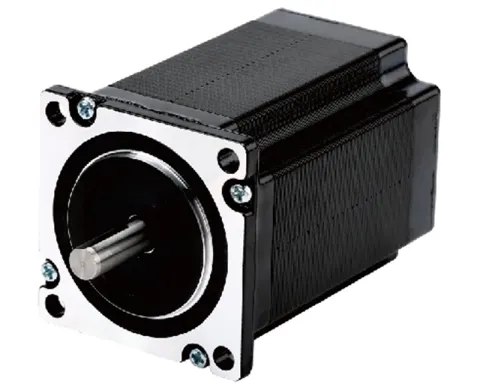

M2574T013-6.35
NEMA 23 stepper motor, 57mm flange, 2.8 A/phase, 1.3 Nm / 13.3 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.3 Nm \ 13.26 kg-cm
₹1,600
In stock
M2574T022-8
NEMA 23 stepper motor, 57mm flange, 4 A/phase, 2.2 Nm / 22.4 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 4.0 A
- Holding torque
- 2.2 Nm \ 22.43 kg-cm
₹2,400
In stock
M2574T030-8
NEMA 23 stepper motor, 57mm flange, 5.0 A/phase, 3.0 Nm / 30.6 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 5.0 A
- Holding torque
- 3.0 Nm \ 30.59 kg-cm
₹3,800
In stock
M2868T035-14
NEMA 34 stepper motor, 86mm flange, 2.8 A/phase, 3.5 Nm / 35.7 kg-cm holding torque, 8 leads.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 2.8 A
- Holding torque
- 3.5 Nm \ 35.69 kg-cm
₹4,200
In stock
M2864T065-14
NEMA 34 stepper motor, 86mm flange, 4.6 A/phase, 6.5 Nm / 66.3 kg-cm holding torque, 4 leads, 14mm keyed shaft.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 4.6 A
- Holding torque
- 6.5 Nm \ 66.28 kg-cm
₹5,200
In stock
M2868T085-14
NEMA 34 stepper motor, 86mm flange, 4.9 A/phase, 8.5 Nm / 86.7 kg-cm holding torque, 8 leads.
- Flange size
- 86 mm (NEMA 34)
- Phase current
- 4.9 A
- Holding torque
- 8.5 Nm \ 86.68 kg-cm
₹6,200
In stock
T110H150-6504
NEMA 42 hybrid stepper motor, 6.5 A/phase, 19 Nm / 193.7 kg-cm holding torque, 4 leads.
- Phase Current
- 6.5 A
- Holding torque
- 19 Nm \ 193.75 kg-cm
- Lead wires
- 4
₹15,200
In stock
T42H38-1206
NEMA 17 stepper motor, 38mm body, 1.2 A/phase, 0.25 Nm / 2.5 kg-cm holding torque, 6 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.2 A
- Holding torque
- 0.25 Nm \ 2.5 kg-cm
₹850
In stock
T42H38-1684
NEMA 17 stepper motor, 38mm body, 1.68 A/phase, 0.35 Nm / 3.6 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.68 A
- Holding torque
- 0.35 Nm \ 3.6 kg-cm
₹800
In stock
T42H47-1504
NEMA 17 stepper motor, 47mm body, 1.5 A/phase, 0.54 Nm / 5.5 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.5 A
- Holding torque
- 0.54 Nm \ 5.5 kg-cm
₹1,000
In stock

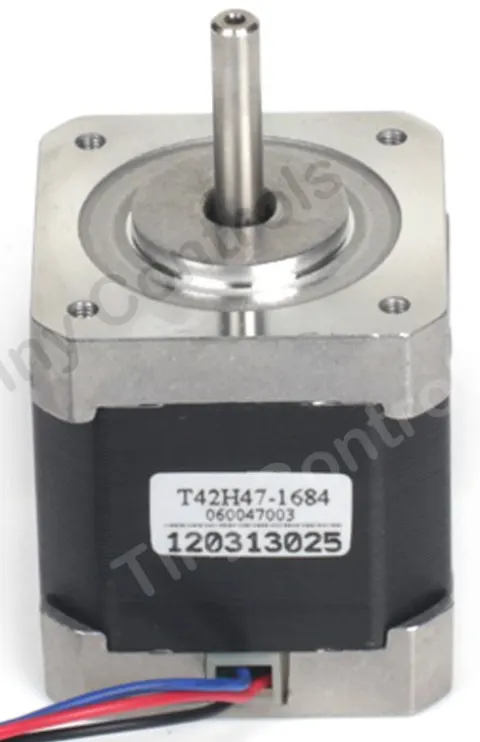

T42H47-1684
NEMA 17 stepper motor, 47mm body, 1.68 A/phase, 0.43 Nm / 4.4 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.68 A
- Holding torque
- 0.43 Nm \ 4.4 kg-cm
₹850
In stock
T42H47-1684B
NEMA 17 dual-shaft stepper motor, 47mm body, 1.68 A/phase, 0.43 Nm / 4.4 kg-cm holding torque, 4 lead wires.
- Flange size
- 42 mm (NEMA 17)
- Phase current
- 1.68 A
- Holding torque
- 0.43 Nm \ 4.4 kg-cm
₹1,000
In stock
T57H111-4004
NEMA 23 high-torque stepper motor, 111mm body, 4.4 A/phase, 3.14 Nm / 32.0 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 4.4 A
- Holding torque
- 3.14 Nm \ 32 kg-cm
₹3,500
In stock
T57H51-2804
NEMA 23 stepper motor, 51mm body, 2.8 A/phase, 0.99 Nm / 10.1 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 0.99 Nm \ 10.1 kg-cm
₹1,400
In stock

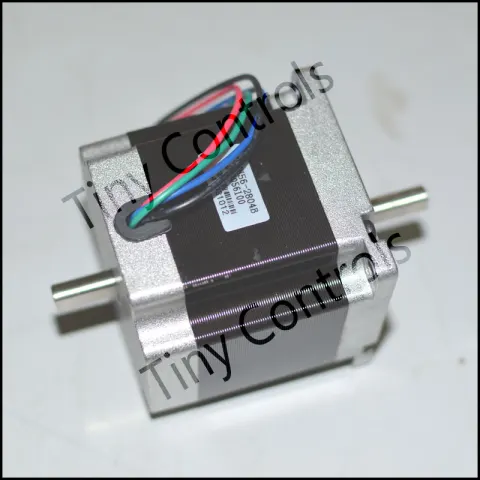

T57H56-2804
NEMA 23 stepper motor, 56mm body, 2.8 A/phase, 1.24 Nm / 12.6 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.24 Nm \ 12.6 kg-cm
₹1,600
In stock

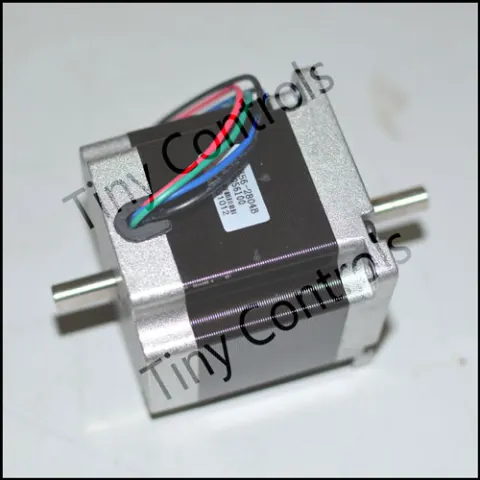

T57H56-2804B
NEMA 23 stepper motor, 56mm body, 2.8 A/phase, 1.24 Nm / 12.6 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.24 Nm \ 12.6 kg-cm
₹1,650
In stock
T57H76-2804
NEMA 23 stepper motor, 76mm body, 2.8 A/phase, 1.85 Nm / 18.9 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.85 Nm \ 18.9 kg-cm
₹2,000
In stock

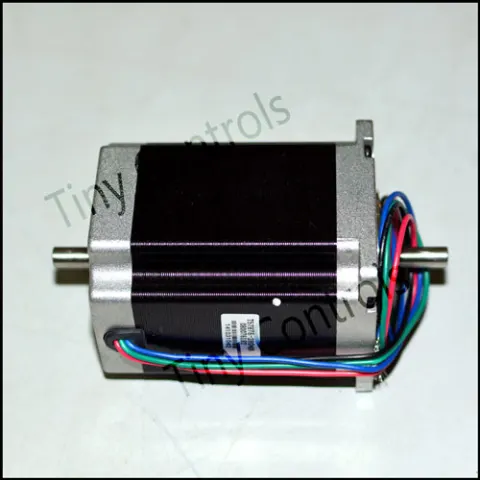

T57H76-2804B
NEMA 23 stepper motor, 76mm body, 2.8 A/phase, 1.85 Nm / 18.9 kg-cm holding torque, 4 leads.
- Flange size
- 57 mm (NEMA 23)
- Phase current
- 2.8 A
- Holding torque
- 1.85 Nm \ 18.9 kg-cm
₹2,050
In stock
T85H118-4208
NEMA 34 stepper motor, 118mm body, 4.2 A/phase, 8.53 Nm / 87.0 kg-cm holding torque, 8 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 4.2 A
- Holding torque
- 8.53 Nm \ 87 kg-cm
₹6,200
In stock
T85H156-6204
NEMA 34 stepper motor, 156mm body, 6.2 A/phase, 12.2 Nm / 124.0 kg-cm holding torque, 4 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 6.2 A
- Holding torque
- 12.16 Nm \ 124 kg-cm
₹8,500
In stock
T85H65-2808
NEMA 34 bipolar stepper motor, 65mm body, 2.8 A/phase, 3.33 Nm / 34.0 kg-cm holding torque, 8 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 2.8 A
- Holding torque
- 3.33 Nm \ 34 kg-cm
₹4,200
In stock
T85H80-4208
NEMA 34 stepper motor, 80mm body, 4.2 A/phase, 4.51 Nm / 46.0 kg-cm holding torque, 8 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 4.2 A
- Holding torque
- 4.51 Nm \ 46 kg-cm
₹4,600
In stock
T85H90-5504
NEMA 34 stepper motor, 90mm body, 5.5 A/phase, 5.88 Nm / 60.0 kg-cm holding torque, 4 leads.
- Flange size
- 85 mm (NEMA 34)
- Phase current
- 5.5 A
- Holding torque
- 5.88 Nm \ 60 kg-cm
₹5,000
In stock
Twenty-four motors grouped by frame: NEMA 17 (42mm, up to 0.54 Nm/5.5 kg-cm), NEMA 23 (57mm, 0.99-3.14 Nm/10.1-32 kg-cm), NEMA 34 (85-86mm, 3.33-12.16 Nm/34-124 kg-cm) and NEMA 42 (110mm, 19 Nm/193.7 kg-cm). Within a frame size, a longer body generally means more torque at the same current, since it carries more magnetic material — check body length against your mount's clearance before stepping up.
